Larger nailing area: greater accuracy, less blow-offs, less leaks.
First to Engineer a Larger Nailing Area - The Zone®
It takes over 6,000 nails to properly secure a roof. Even one out of place can lead to leaks or void a wind warranty. That’s why we patented the industry’s first larger nailing area, called The Zone®.
Compare Nailing Areas (top view)

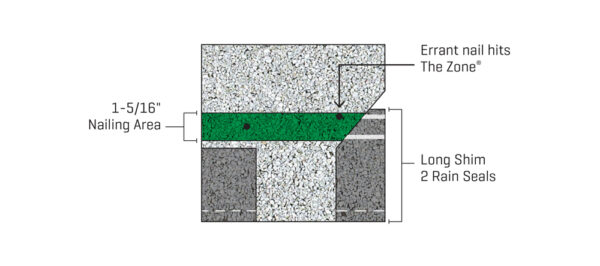

Malarkey Nailing Area
Wider nailing lines on the top of the shingle create a bigger target that’s easier to hit to improve installation speed & accuracy.
Longer shingle backing shim helps ensure nails penetrate BOTH shingle layers to help prevent shingle uplift and blow-offs.
Double rain seals provide twice the protection of standard shingles against leaks from wind-blown rain.

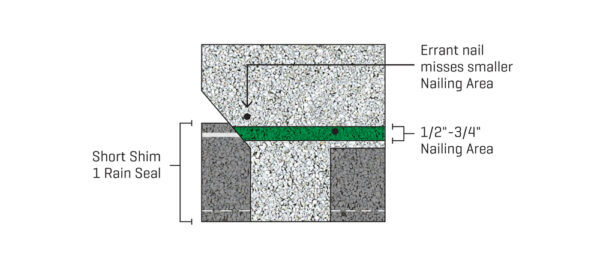

Standard Nailing Area
Narrow nailing lines increase the risk of high or low nailing outside of the optimal placement area for greater risk of leaks.
Short shingle backing shim risks nails not penetrating through both shingle layers to increase risk of shingle uplift or blow-off.
One rain seal provides the minimum required to protect against leaks from wind-blown rain.
What's the Point?
The point is for nails to penetrate BOTH shingle layers.
The point of a larger nailing area is to help ensure that every nail hits and penetrates both shingle layers, where the two shingle layers overlap, in order to properly secure the shingle to the roof, and protect against shingle uplift and blow-off.
Compare Nailing Areas (side view)

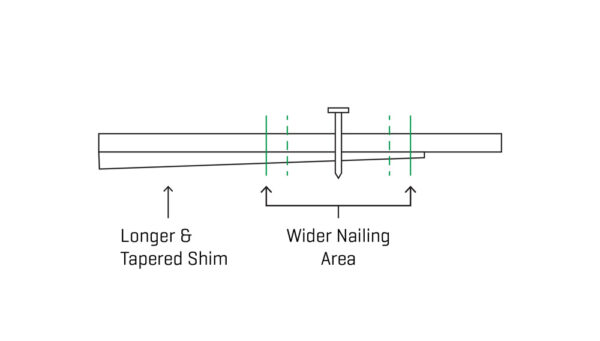

Malarkey Nailing Area
Longer shingle backing shim helps nails penetrate BOTH shingle layers to help prevent shingle uplift and blow-offs
Tapered shingle backing shim helps shingles lay flatter to more effectively shed water to help prevent risk of troughing and ice damming.

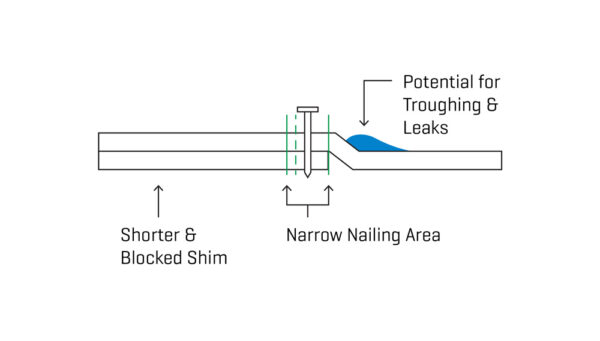

Standard Nailing Area
Short shingle backing shim increases chance that nails will penetrate the top shingle layer but miss the second/back layer.
Blocked shingle backing shim increases risk of wind-blown rain pooling under the shingle and leaking down a misplaced nail into the home, known as troughing.

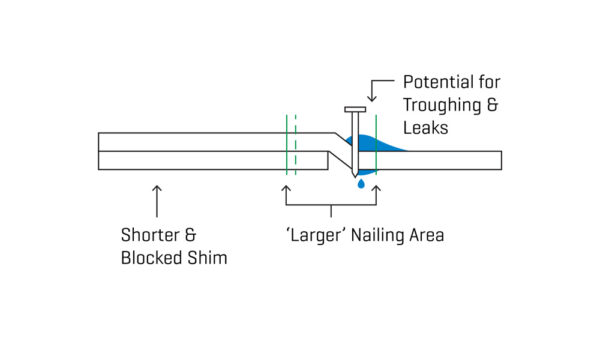

'Larger' Nailing Area
Beware: Some shingles claim a ‘larger’ nailing area by simply widening the lines on the top of the shingle without also lengthening the back/bottom of the shingle to match.
These shingles completely miss the point (literally), which is for nails to penetrate BOTH shingle layers to properly secure shingles to the roof.
