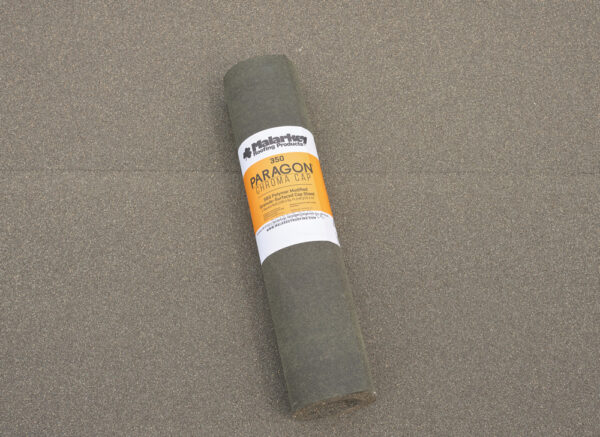

350 Paragon® CHROMA Cap
Premium Mineral Cap Sheet
Paragon® CHROMA Cap with Polymer Modified (Rubberized) Asphalt is a premium mineral cap sheet, that can be used as a roof covering or fire-rated underlayment for tile roofs.
Chroma Cap is Capable
Paragon® CHROMA Cap is manufactured to meet the needs of a high quality built-up roofing system, single layer roll roofing installation, or clay and concrete tile underlayment. Paragon® CHROMA Cap can be mechanically fastened and applied with hot mopping asphalt or cold process adhesives.
Tile Compatible
CHROMA Cap is primarily used under tile roofs, and for small roofing projects. Its mineral surface delivers added protection when broken roof tiles can expose materials to UV rays. In addition, CHROMA cap meets California’s requirements for a fire-rated underlayment for tile roofs.
Key Features
Durable
In direct sunlight, mineral cap sheets will last for many years. CHROMA cap, when paired with a tile roof, there is no limitation to the life of the product.
Polymer Modified (Rubberized) Asphalt
Reinforced with Malarkey’s industry-leading Polymer Modified (Rubberized) Asphalt, the granule adhesion and longevity of CHROMA cap is incomparable.
Product Details
| Application Method | Asphalt Technology | Tear Strength | Thickness | Testing Compliance | Warranties | Fire Resistance (FR) | |
|---|---|---|---|---|---|---|---|
|
350 Paragon® CHROMA Cap
|
Mechanically Fastened | Polymer Modified (Rubberized) Asphalt | Enhanced | 105 mils | ASTM D3909; ASTM D4869; ASTM D6757; ASTM E108 Class A; Intertek CCRR-0333; UL & Intertek Listed | Up to 30 years | ASTM E108 Class A |
| Hot Asphalt | Polymer Modified (Rubberized) Asphalt | Enhanced | 120 mils | ASTM D3909; ASTM E108 Class A; Intertek CCRR-0333; UL & Intertek Listed; FM Approved | Up to 30 years | ASTM E108 Class A | |
| Self-Adhered | N/A | Exceptional | 45 mils | ASTM D1970, ASTM E108 Class A | Lifetime | ASTM E108 Class A when paired with a Class A shingle |
|
350 Paragon® CHROMA Cap
|
|||
|---|---|---|---|
| Application Method |
Mechanically Fastened |
Hot Asphalt |
Self-Adhered |
| Asphalt Technology |
Polymer Modified (Rubberized) Asphalt |
Polymer Modified (Rubberized) Asphalt |
N/A |
| Tear Strength |
Enhanced |
Enhanced |
Exceptional |
| Thickness |
105 mils |
120 mils |
45 mils |
| Testing Compliance |
ASTM D3909; ASTM D4869; ASTM D6757; ASTM E108 Class A; Intertek CCRR-0333; UL & Intertek Listed |
ASTM D3909; ASTM E108 Class A; Intertek CCRR-0333; UL & Intertek Listed; FM Approved |
ASTM D1970, ASTM E108 Class A |
| Warranties |
Up to 30 years |
Up to 30 years |
Lifetime |
| Fire Resistance (FR) |
ASTM E108 Class A |
ASTM E108 Class A |
ASTM E108 Class A when paired with a Class A shingle |
350 Paragon CHROMA Cap
350 Paragon CHROMA Cap Label

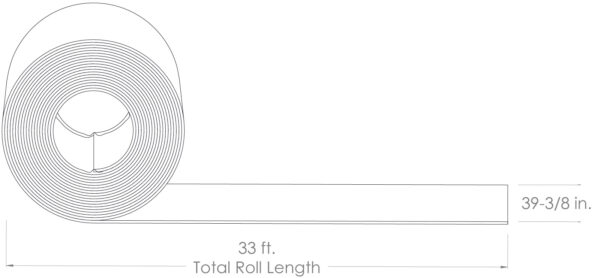

Technical Specs
SKU: 350
L: 33′
W: 39-3/8″
SQ/Roll: 1
Thickness: 105 mils nominal
Testing Compliance
ASTM D3909
ASTM D4869
ASTM D6757
ASTM E108 Class A
Intertek CCRR-0333
UL & Intertek Listed
Shipping Specifications
SQ/Roll: 1
Rolls/Pallet: 30
Rolls/Truckload: 600
PDF Documents
350 Paragon CHROMA Cap Installation Guide

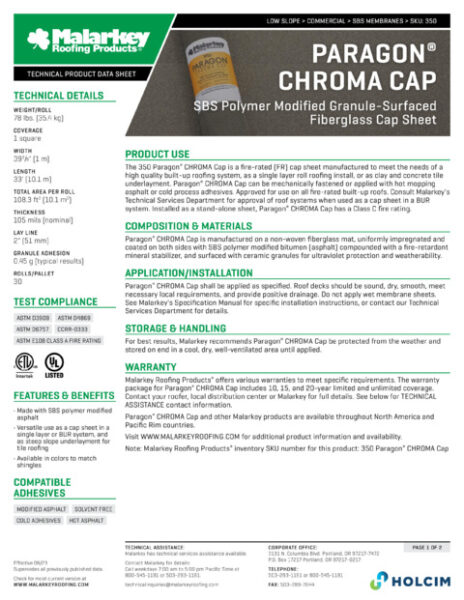

350 Paragon CHROMA Cap Tech Data

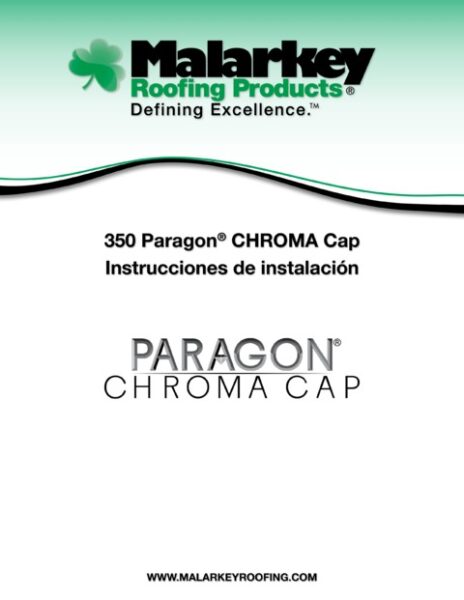

Instrucciones de Instalación de Paragon CHROMA Cap (Español)
Product Data Guide
Secure Choice System Brochure
Warranty
Malarkey Roofing Products® offers various warranties to meet specific requirements. The warranty packages available for systems using 350 Paragon® CHROMA Cap include 10, 15, 20, 25, and 30-year limited and unlimited coverage. Contact Malarkey’s Technical Services Department for approval of roof systems.
