350 Paragon CHROMA Cap & 601 Paragon MOD Cap Safety Data Sheet
Commercial
601 Paragon® MOD Cap
Hot Asphalt Applied, Modified Cap Sheet
Made with our industry-leading Polymer Modified (Rubberized) Asphalt, Paragon® MOD Cap Sheet is our hot asphalt applied, modified asphalt cap sheet for low-slope commercial roofing applications.
System Optionality
Paragon® MOD Cap is a modified asphalt sheet that can be used with a base sheet or ply sheet to create a 2-4 layer multi-ply system that meets desired performance, cost, and warranty needs.
Modified Asphalt Performance
Paragon® MOD Cap is constructed with our proprietary Polymer Modified (Rubberized) Asphalt, reinforced with fiberglass, to create a super strong, durable waterproof sheet membrane.
Hot Asphalt Application
Paragon® MOD Cap is a hot asphalt applied membrane. Asphalt is naturally sticky, even more so when heated. When installed, liquified asphalt is spread across the roof, filling voids, cracks and other unseen penetrations. It is then layered and repeated to ensure a watertight roofing system that has proven to last up to 50 years.
Key Features
Modified Asphalt
Made with proprietary Polymer Modified (Rubberized) Asphalt for exceptional weathering and extra strength, flexibility, and durability to resist damage and last longer.
Hot Asphalt
Sheet is applied via hot asphalt. Asphalt is naturally sticky, even more so when heated. During installation, liquified asphalt is spread across the roof, filling voids, cracks and other unseen penetrations, and adheres layered membranes to ensure a watertight roofing system.
Multi-ply System
Can be combined with conventional or modified asphalt sheets to create multi-layer redundancy and satisfy performance need, cost, or warranty.
Strong & Durable
Modified asphalt sheets are reinforced with rubber and plastic polymers on a non-woven fiberglass mat. Combined with other sheets for redundancy, delivers greater tear strength than conventional built-up roofing membranes for extreme, lasting durability. Up to 426 mils thick in a 3-ply system, 10X thicker than common single ply roofing systems.
Waterproof System
Naturally waterproof asphalt, built into a multi-ply system, helps resist water penetration.
Fire Resistance (FR)
Class A fire rated in a system assembly over a combustible or non-combustible deck.
Product Details
| Application Method | Asphalt Technology | Tear Strength | Thickness | Testing Compliance | Warranties | Fire Resistance (FR) | |
|---|---|---|---|---|---|---|---|
|
601 Paragon® MOD Cap
|
Hot Asphalt | Polymer Modified (Rubberized) Asphalt | Enhanced | 120 mils | ASTM D3909; ASTM E108 Class A; Intertek CCRR-0333; UL & Intertek Listed; FM Approved | Up to 30 years | ASTM E108 Class A |
| Mechanically Fastened | Polymer Modified (Rubberized) Asphalt | Enhanced | 105 mils | ASTM D3909; ASTM D4869; ASTM D6757; ASTM E108 Class A; Intertek CCRR-0333; UL & Intertek Listed | Up to 30 years | ASTM E108 Class A | |
| Self-Adhered | Polymer Modified (Rubberized) Asphalt | Enhanced | 125 mils | ASTM D3909; ASTM D7530; ASTM E108 Class B & C; UL 2218 Class 4; Intertek Listed | Up to 17 years | ASTM E108 Class B & C | |
| Self-Adhered | Polymer Modified (Rubberized) Asphalt | Enhanced | 125 mils | ASTM D3909; ASTM D7530, ASTM D1970; ASTM D6163 Type I, Grade G; ASTM E108 Class A & B; UL 2218 Class 4; Intertek Listed | Up to 20 years | ASTM E108 Class A & B |
|
601 Paragon® MOD Cap
|
||||
|---|---|---|---|---|
| Application Method |
Hot Asphalt |
Mechanically Fastened |
Self-Adhered |
Self-Adhered |
| Asphalt Technology |
Polymer Modified (Rubberized) Asphalt |
Polymer Modified (Rubberized) Asphalt |
Polymer Modified (Rubberized) Asphalt |
Polymer Modified (Rubberized) Asphalt |
| Tear Strength |
Enhanced |
Enhanced |
Enhanced |
Enhanced |
| Thickness |
120 mils |
105 mils |
125 mils |
125 mils |
| Testing Compliance |
ASTM D3909; ASTM E108 Class A; Intertek CCRR-0333; UL & Intertek Listed; FM Approved |
ASTM D3909; ASTM D4869; ASTM D6757; ASTM E108 Class A; Intertek CCRR-0333; UL & Intertek Listed |
ASTM D3909; ASTM D7530; ASTM E108 Class B & C; UL 2218 Class 4; Intertek Listed |
ASTM D3909; ASTM D7530, ASTM D1970; ASTM D6163 Type I, Grade G; ASTM E108 Class A & B; UL 2218 Class 4; Intertek Listed |
| Warranties |
Up to 30 years |
Up to 30 years |
Up to 17 years |
Up to 20 years |
| Fire Resistance (FR) |
ASTM E108 Class A |
ASTM E108 Class A |
ASTM E108 Class B & C |
ASTM E108 Class A & B |
601 Paragon MOD Cap
601 Paragon MOD Cap Label
Technical Specs
SKU: 601

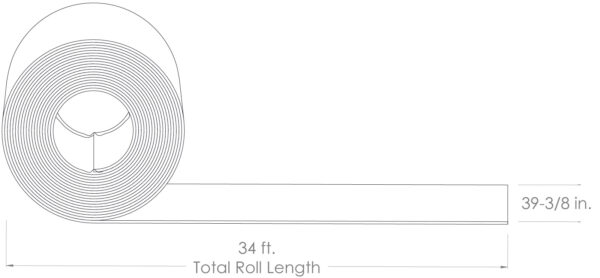

L: 34′
W: 39-3/8″
SQ/Roll: 1
Thickness: 120 mils nominal
Testing Compliance
ASTM D3909
ASTM E108 Class A
Intertek CCRR-0333
UL & Intertek Listed
FM Approved
Shipping Specifications
SQ/Roll: 1
Rolls/Pallet: 25
Rolls/Truckload: 480
PDF Documents

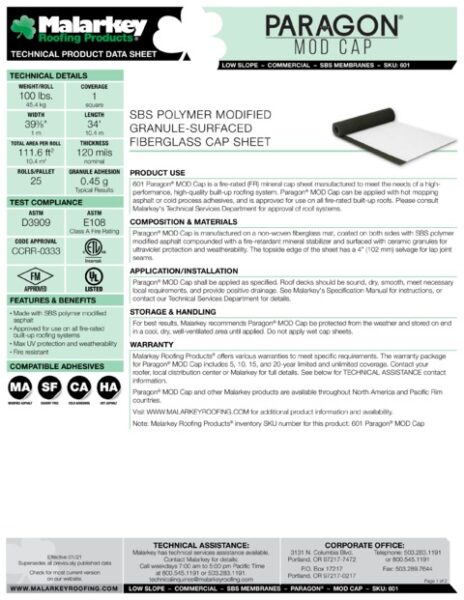

601 Paragon MOD Cap Tech Data
Product Data Guide
Warranty
Malarkey Roofing Products® offers various warranties to meet specific requirements. The warranty packages available for systems using 601 Paragon® MOD Cap include 10, 15, 20, 25, and 30-year limited and unlimited coverage. Contact Malarkey’s Technical Services Department for approval of roof systems.
Compare Products
| Application Method | Asphalt Technology | Tear Strength | Thickness | Testing Compliance | Warranties | Fire Resistance (FR) | |
|---|---|---|---|---|---|---|---|
|
601 Paragon® MOD Cap
|
Hot Asphalt | Polymer Modified (Rubberized) Asphalt | Enhanced | 120 mils | ASTM D3909; ASTM E108 Class A; Intertek CCRR-0333; UL & Intertek Listed; FM Approved | Up to 30 years | ASTM E108 Class A |
| Mechanically Fastened | Polymer Modified (Rubberized) Asphalt | Enhanced | 105 mils | ASTM D3909; ASTM D4869; ASTM D6757; ASTM E108 Class A; Intertek CCRR-0333; UL & Intertek Listed | Up to 30 years | ASTM E108 Class A | |
| Self-Adhered | Polymer Modified (Rubberized) Asphalt | Enhanced | 125 mils | ASTM D3909; ASTM D7530; ASTM E108 Class B & C; UL 2218 Class 4; Intertek Listed | Up to 17 years | ASTM E108 Class B & C | |
| Self-Adhered | Polymer Modified (Rubberized) Asphalt | Enhanced | 125 mils | ASTM D3909; ASTM D7530, ASTM D1970; ASTM D6163 Type I, Grade G; ASTM E108 Class A & B; UL 2218 Class 4; Intertek Listed | Up to 20 years | ASTM E108 Class A & B |
|
601 Paragon® MOD Cap
|
||||
|---|---|---|---|---|
| Application Method |
Hot Asphalt |
Mechanically Fastened |
Self-Adhered |
Self-Adhered |
| Asphalt Technology |
Polymer Modified (Rubberized) Asphalt |
Polymer Modified (Rubberized) Asphalt |
Polymer Modified (Rubberized) Asphalt |
Polymer Modified (Rubberized) Asphalt |
| Tear Strength |
Enhanced |
Enhanced |
Enhanced |
Enhanced |
| Thickness |
120 mils |
105 mils |
125 mils |
125 mils |
| Testing Compliance |
ASTM D3909; ASTM E108 Class A; Intertek CCRR-0333; UL & Intertek Listed; FM Approved |
ASTM D3909; ASTM D4869; ASTM D6757; ASTM E108 Class A; Intertek CCRR-0333; UL & Intertek Listed |
ASTM D3909; ASTM D7530; ASTM E108 Class B & C; UL 2218 Class 4; Intertek Listed |
ASTM D3909; ASTM D7530, ASTM D1970; ASTM D6163 Type I, Grade G; ASTM E108 Class A & B; UL 2218 Class 4; Intertek Listed |
| Warranties |
Up to 30 years |
Up to 30 years |
Up to 17 years |
Up to 20 years |
| Fire Resistance (FR) |
ASTM E108 Class A |
ASTM E108 Class A |
ASTM E108 Class B & C |
ASTM E108 Class A & B |
Specifications & Testing
601 Paragon MOD Cap
601 Paragon MOD Cap Label
Technical Specs
SKU: 601
L: 34′
W: 39-3/8″
SQ/Roll: 1
Thickness: 120 mils nominal
Testing Compliance
ASTM D3909
ASTM E108 Class A
Intertek CCRR-0333
UL & Intertek Listed
FM Approved
Shipping Specifications
SQ/Roll: 1
Rolls/Pallet: 25
Rolls/Truckload: 480
Documents & Resources
PDF Documents
350 Paragon CHROMA Cap & 601 Paragon MOD Cap Safety Data Sheet
601 Paragon MOD Cap Tech Data
Product Data Guide
Warranty Information
Warranty
Malarkey Roofing Products® offers various warranties to meet specific requirements. The warranty packages available for systems using 601 Paragon® MOD Cap include 10, 15, 20, 25, and 30-year limited and unlimited coverage. Contact Malarkey’s Technical Services Department for approval of roof systems.
